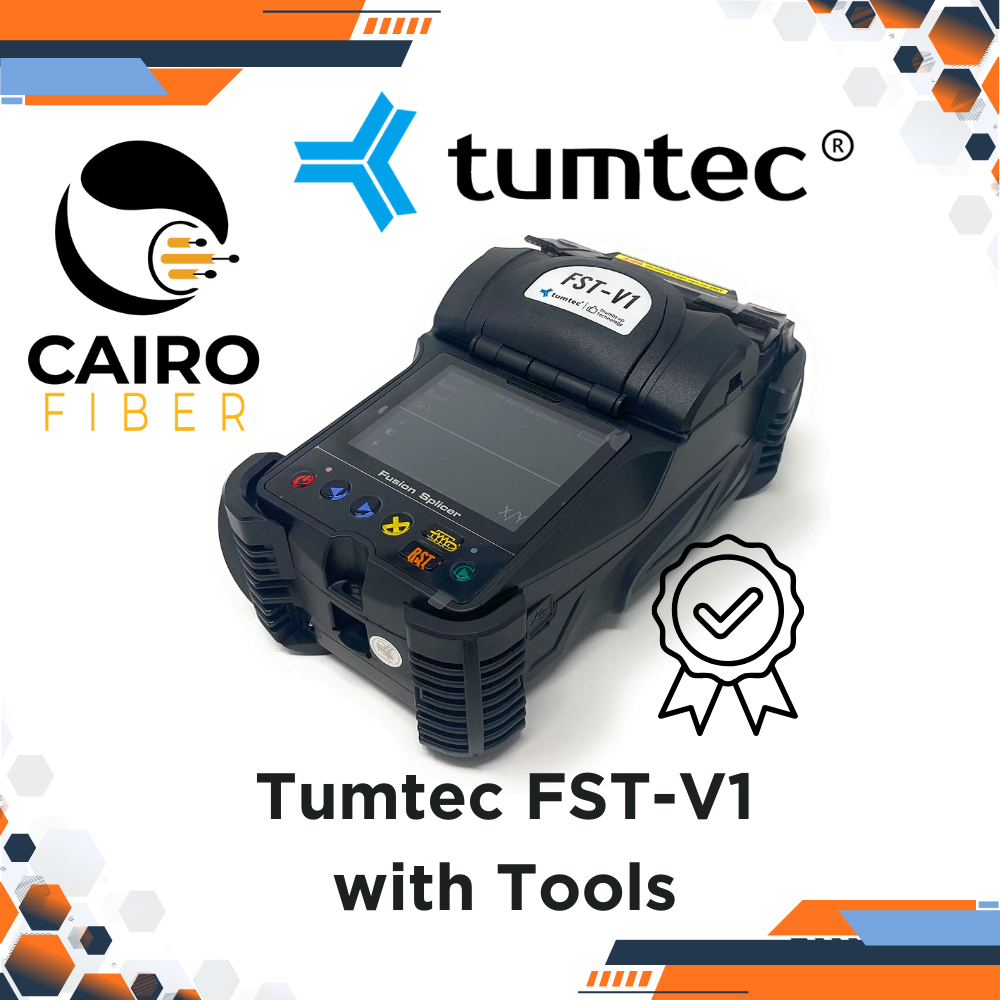

Tumtec FST-V1

Full Product Description

The Tumtec FST-V1 Fusion Splicer is a professional fiber optic splicing solution engineered for technicians working in FTTH deployments, telecom maintenance, and fiber network construction.

Built with advanced image processing and automatic core alignment, the FST-V1 ensures accurate splicing with low loss, even in demanding field conditions.

This splicer features a compact and rugged design, making it suitable for outdoor operations while maintaining high precision comparable to lab-grade equipment. With fast splice and heating times, it significantly improves work efficiency for installers and service providers.

The FST-V1 supports a wide range of fiber types and is equipped with an intelligent arc calibration system that automatically adapts to environmental changes such as altitude, temperature, and humidity. Its user-friendly interface and high-resolution display allow easy operation and real-time monitoring of the splicing process.

Whether you are handling FTTH projects, backbone fiber installations, or routine maintenance, the Tumtec FST-V1 provides stable performance, durability, and consistent splice quality.

⸻

Fiber Types Supported

•Single-mode fiber (SM)

•Multi-mode fiber (MM)

•Dispersion Shifted Fiber (DS)

•Non-Zero Dispersion Shifted Fiber (NZDS)

•Core alignment (image processing)

•Typical splice loss:

•SM: ≤ 0.02 dB

•MM: ≤ 0.01 dB

•Splicing time: approx. 7–10 seconds

•Heating time: approx. 15–18 seconds

•Cladding diameter: 80–150 μm

•Coating diameter: 160–1000 μm

•Cleave length: 8–16 mm

•High-resolution color LCD screen

•Dual-camera system with X/Y axis view

•Magnification: up to 300×

•Rechargeable lithium battery

•Supports multiple splice & heat cycles per charge

•AC power input supported

•Operating temperature: -10°C to +50°C

•Storage temperature: -20°C to +60°C

•Humidity: up to 95% (non-condensing)

•Altitude compensation: automatic

•Automatic arc calibration

•Real-time splice loss estimation

•Built-in LED lighting

•Shock-resistant and dust-resistant body

•Suitable for field and indoor use

⸻

•FTTH network installation

•Telecom backbone fiber splicing

•Access network construction

•Fiber optic maintenance & repair

•ISP and contractor operations

⸻

•Tumtec FST-V1 Fusion Splicer

•Fiber cleaver

•Stripper & basic tools

•Battery & charger

•Carrying case

•User manual
